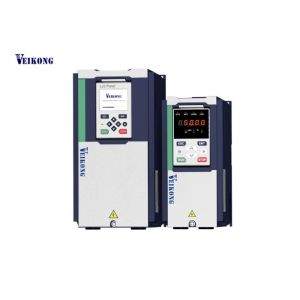

99% MPPT 3 Phase Solar Pump Inverter With Automatic Running LCD
Monitoring
99% MPPT 3 Phase Solar Pump Inverter With Automatic Running &
LCD Monitoring
1. Veikong solar pump inverter high performance product features
achieve higher requirement in water supply
1) Built-in C3 EMC filter and DSP technology and Infineon PIM
design, with functions of light weak protection, dry run and low
voltage, full water warning, overvoltage and overtemperature
protection.
2) Support PID function within MPPT control.
3) Hybrid dc and ac power and support one button switch to ac
power.
4) Advanced calculation for Pump flow and LCD monitoring display.
5) Automatic running without any commissioning in keypad control
and optional GPRS monitoring.
2. VFD500-PV three phase models and factory environment
Dr
ive model | Max DC input current (A) | Rated output current (A) | Applicable water pump (kW) |
|---|
VFD500M-40T00150-PV | 9 | 3.7 | 1.5 |
|---|
VFD500M-40T00220-PV | 12 | 5 | 2.2 |
|---|
VFD500M-40T00400-PV | 16.5 | 9.4 | 4 |
|---|
VFD500M-40T00550-PV | 23.9 | 13 | 5.5 |
|---|
VFD500M-40T00750-PV | 30.6 | 17 | 7.5 |
|---|
VFD500-40T00150-PV | 9 | 4.2 | 1.5 |
|---|
VFD500-40T00220-PV | 12 | 5.6 | 2.2 |
|---|
VFD500-40T00400-PV | 16.5 | 9.4 | 4 |
|---|
VFD500-40T00550-PV | 23.9 | 13 | 5.5 |
|---|
VFD500-40T00750-PV | 30.6 | 17 | 7.5 |
|---|
VFD50040T01100-PV | 39.2 | 25 | 11 |
|---|
VFD500-40T01500-PV | 49.0 | 32 | 15 |
|---|
VFD500-40T01850-PV | 50 | 37 | 18.5 |
|---|
VFD500-40T02200-PV | 60 | 45 | 22 |
|---|
VFD500-40T03000-PV | 81 | 60 | 30 |
|---|
VFD500-40T03700-PV | 90 | 75 | 37 |
|---|
VFD500-40T04500-PV | 130 | 90 | 45 |
|---|
VFD500-40T05500-PV | 150 | 112 | 55 |
|---|
VFD500-40T07500-PV | 200 | 152 | 75 |
|---|
VFD500-40T09000-PV | 250 | 176 | 90 |
|---|
VFD500-40T11000-PV | 300 | 210 | 110 |
|---|
VFD500-40T13200-PV | 360 | 253 | 132 |
|---|
VFD500-40T16000-PV | 430 | 304 | 160 |
|---|
VFD500-40T18500-PV | 500 | 360 | 185 |
|---|
VFD500-40T20000-PV | 550 | 380 | 200 |
|---|
VFD500-40T22000-PV | 620 | 426 | 220 |
|---|
VFD500-40T25000-PV | 680 | 465 | 250 |
|---|
Key Features:
Product Details and Features:
1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 160KW)
2. DC/AC Input Compatible, can support DC and AC Input at same time
3. Protection Functions: Over/Under voltage Over-current, Short
Circuit, Phase Failure etc
4. Optimized MPPT Arithmetic Accuracy 99%
5. Multi-liquid-level Control, Dry run protection, Wake and Sleep
function,,PID control
6. Auto-dormancy on weak light, auto-recovery working on strong
light, no need for man-made operations
7. Auto switch over From Solar to Grid Supply with weak light
8. Support optional LCD display and GPRS module.
Product Application
FAQ
1. Use level probe in the well for protection against dry running
First solution: See self learning of dry run
Second solution: do it manually Set P24.13=30%-60%(as per real
empty load current percentage based on
rated current) and P24.14 P24.16 and P23.21
Third solution: If your sensor is digital switch ,just short D4 and
com
Fourth solution: If your float signal is Analog signal, Connect Ai2
and 10V and GND and set P41.00=23 and
P41.03-P41.06
2. How to set minimum frequency ( for example) 30hz and maximum
50HZ
Set P47.05=30HZ and 47.06 to some time and 47.07 to some time.
Please refer to details of P47.05-47.07
Customer service and technical support
1. Pre-sale service
- Listen to any raised needs and technical issues;
- Send relevant technical information and solutions quickly;
- Offer the best solution and quotation for the equipments;
- Provide convenience to visit factory and on-site inspections.
2. Sale service
- Treat very contract seriously, impartially and honestly;
- Implement the contracts on time and in good quality strictly ;
- Free to provide the service(installation, debug, trainning.etc).
3. After-sales service
- 18 monthes warranty in service period, Offer free components.
- After installation and commission, free training for system;
- Fault site: reply within 12 hours, dispatch staff within 3 days if
necessary.
