    Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VKS
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal
    Supply Ability : 15000pcs per Month
    Delivery Time : 3 days, depend on the order quantity
    • Product Details
    • Company Profile

    Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor

    60W 80W 100W 120W 150W Aluminum and Corrugated resistance braking resistor ​


    Resistor
    1) Power supplies.
    2) Large electrical and production machinery.
    3) Load test simulation.
    4) Motor start/stop cycles.
    5) Capacity charge.
    6) Load test simulation.
    7) Equipment dischargen.
    8) Eynamic braking.

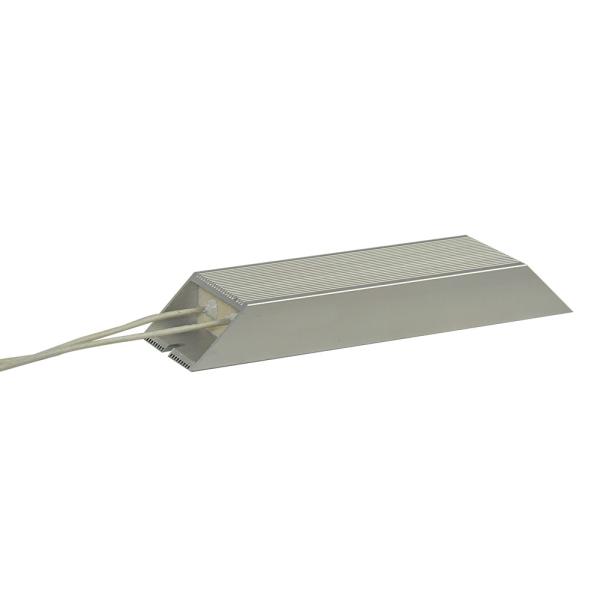

    Aluminum Braking Resistor

    * Aluminum Braking Resistor can be used in the atrocious environment.
    * Aluminum Housed surface with good performance in heat.
    * Nylon wrapped wire with solder lug terminals.
    * Suitable for cooling plate installation; Widely used in power supply,transducer,elevator and so on.
    * Application: VFD,elevators, electric power system,current limiting load and other electrical equipment.
    * Product Name : Braking Resistor;Resistance Value : 18 Ohm;Rated Power : 100W
    * Overall Size(Approx) : 13 x 4 x 2cm / 5.1" x 1.6" x 0.8"(L*W*T);Cable Size : 42.5 x 0.3cm / 16.7" x 0.118"( L*OD)
    * Installing Holes Size(Approx) : 1 x 0.64cm / 0.394" x 0.252"(L*W);Terminals Size(Approx) : 0.76 x 0.4cm / 0.299" x
    0.157"(OD*Inner D)
    * External Material : Aluminum;Color : Silver Tone
    * Net Weight : 186g;Package Content : 1 x Braking Resistor


    wire wound ceramic braking resistor

    Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied.The ceramic tube can function as resistance wire skeleton and heat raditor as well.This product can be customized to special needs of customers and applicable to simulation load test,equipment discharge,automated control and inverter’s energy loss brake.

    Product features

    1. Power Range:50w-2500w
    2. Voltage Range:0.5kv-10kv
    3. Resistance Range:1R-1KR
    4. Dielectric Strength:AC3KV 50Hz/5s
    5. IPProtection:IP00
    6. Temperature Coefficient:0Cr25AL5
    7. Advantage:High Voltage Application
    8. Disadvantage:Less Vibration


    Material Specifications

    ElementCopper-nickel, nickel-chrome
    CoreOCr25AL5
    EnclosureAluminum
    Standard terminalsCopper / Copper bar
    PartmarkingPartnumber, value, date code, MRC


    Technial Specifications

    Power Range60W-10KW
    Voltage Range<1.2KV
    Resistance Range1R-10KR
    Dielectric StrengthAC 3KV 50Hz / 5S
    IP ProtectionIP23 / IP65
    Vibration1.5g
    Temperature Coefficient≤ 400ppm/℃
    Production StandardsGB8898-2011



    Applications



    Product Size


    VEIKONG High Power Aluminum1000w 800w 500w 400w 80w 50w Braking Resistor ( VEIKONG High Power Aluminum1000w 800w 500w 400w 200w 150w 120w 100w 80w 60w 50w Braking Resistors ) is a kind of aluminum encased resistor that consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure . Following high-temperature anodization , the enclosure is filled with a special non-flammable cement paste and after hardening , insulation isapplied through a high-tem perature process . Since the resistor is em-bedded in the heat-proofcement , is not affected by external me-chanical force , dusty environments , or extreme duty . It is durable and vibration-proof ,dissipates heat well , and has a low temperature coefficient , with resistance varying in direct proportion . Supporting aflexible range of applications , the product is easy to utilize and install . Applications include industrial machinery , load testing , electric power distribution , instruments , and automated control installations.
